Model Number : AMS3003H00

Place of Origin : CN

MOQ : 1PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, ,

Supply Ability : 5000PCS

Delivery Time : 5-8 work days

Packaging Details : Standard packaging

Measuring Range : 30 - 3000 L/min

Accuracy : ±3% F.S.

Repeatability : ±1% F.S.

Response Time : 1 s

Power Supply : 9 - 28 V DC

Power Consumption : ＜0.85 W

Contact Now

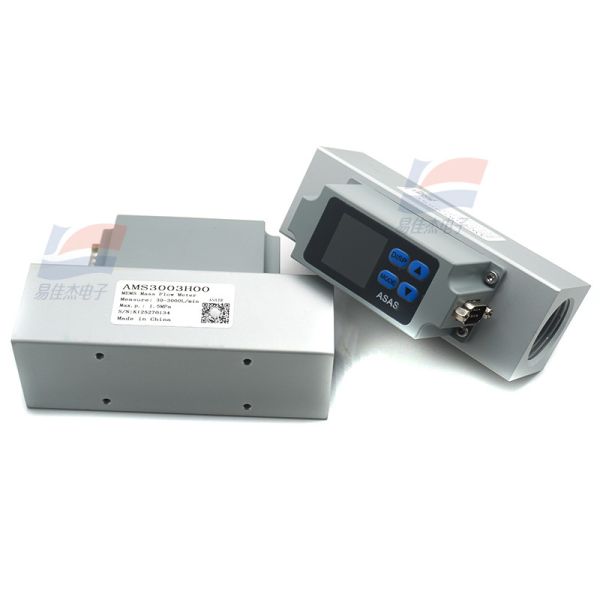

AMS3003H00 Gas Mass Flow Meter For University Scientific Research Experiments Industrial Process Monitoring

Features:

Diversified output and communication: It integrates multiple output methods such as analog signals and digital communication, which can be flexibly matched with various industrial control systems and meets the personalized integration needs of different users.
Intuitive operation and monitoring: The built-in TFT display can clearly show the Modbus communication address, cumulative flow, instantaneous flow and other key data, and the operation buttons allow for convenient parameter setting.
Reliable structural design: The combination of PC shell and 6061 aluminum alloy air duct ensures good durability. It also has a high-pressure resistance capacity, which can adapt to most conventional industrial gas pipeline pressure environments.
Easy system integration: It adopts a standard DB9 male interface, and the pin definitions are standardized, which simplifies the wiring and assembly process during system integration.

Typical Application Scenarios:

University scientific research experiments: Used in gas flow control systems in laboratories to provide accurate flow data for chemical, physical and other related experiments.
Industrial process monitoring: Applied in gas supply pipelines of food and pharmaceutical production lines to monitor the flow of protective gases or process gases and ensure the stability of production processes.
Environmental monitoring equipment: Integrated into air circulation detection systems to monitor the flow of gas samples and assist in the analysis of environmental quality data.
Intelligent agriculture: Used in greenhouse ventilation and gas supply systems to control the flow of ventilation and nutrient gases, creating a suitable growth environment for crops.

Core Measurement Performance	Measuring Range: 30 - 3000 L/min Accuracy: ±3% F.S. Repeatability: ±1% F.S. Response Time: 1 s Calibration Gas: Air (at 25℃ and 1 standard atmospheric pressure)
Electrical Parameters	Power Supply: 9 - 28 V DC Power Consumption: ＜0.85 W Output Modes: RS485, NPN open-collector output, 1 - 5 V linear voltage output, 4 - 20 mA linear current output Communication Protocol: Modbus RTU Communication Baud Rate: 4800/9600/19200/115200 bps
Mechanical & Installation Specifications	Mechanical Interface: 2-RC1 Shell Material: PC Air Duct Material: 6061 aluminum alloy Installation Method: Horizontal installation is preferred; zero-point calibration is recommended for vertical installation Working Pressure Range: 0.1 - 1.5 MPa Maximum Pressure Resistance: 2.25 MPa
Environmental Adaptability	Operating Temperature: 0 - +50℃

AMS3003H00 Gas Mass Flow Meter For University Scientific Research Experiments Industrial Process Monitoring
